產品查詢
SEARCH模塊式（3-50W）
當前位置：首頁 > 產品中心 > AC-DC開關電源模塊 > 模塊式（3-50W）-
ACDC超薄款10W12W15W2寬輸入電壓：90-264VAC
低紋波噪聲、低功耗
輸入與輸出隔離3KVAC
常規輸出電壓：5V 12V
工業級設計,批量價格優勢大
50.8mm×25.4mm×15.5mm
-

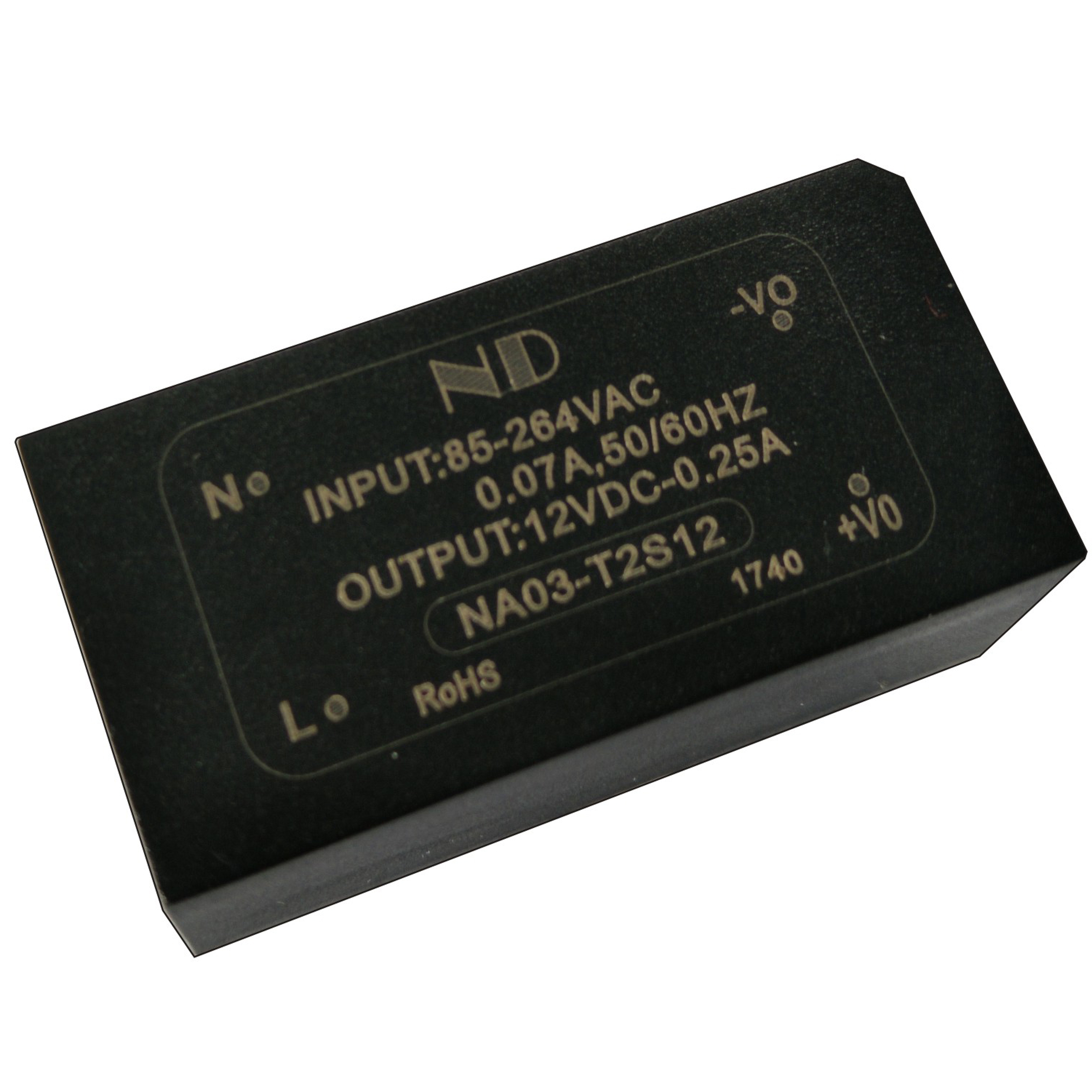

NA03-T2SXX輸出功率:3W
輸入電壓:85-264VAC
輸出電壓:5V/9V/12V/15V/24V
隔離耐壓:3000VAC
產品尺寸:38*19.5*17mm
產品級別:工業級 滿足RoHS -

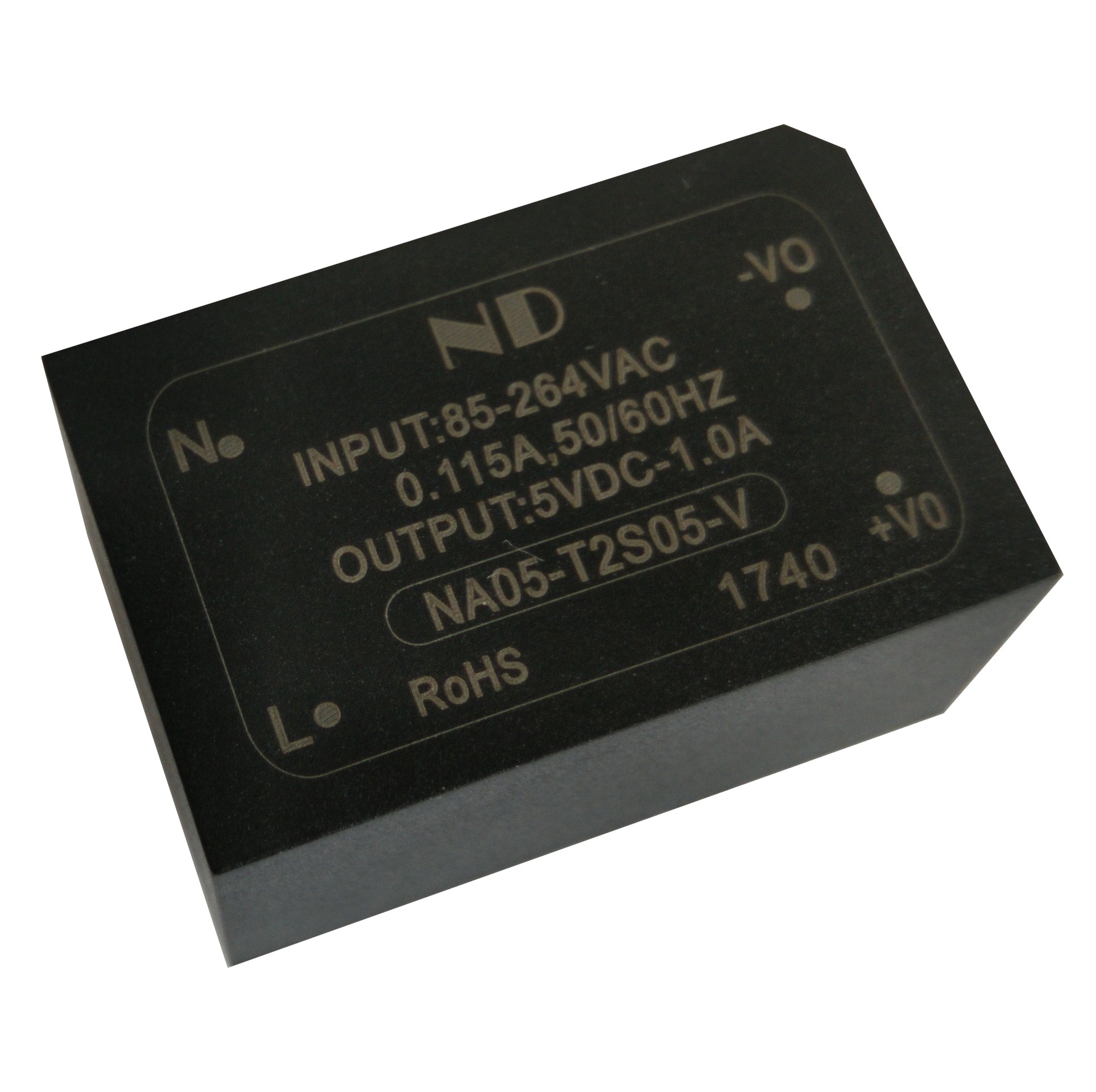

NA05-T2SXX-V輸出功率:5W
輸入電壓:85-264VAC
輸出電壓:5V/12V/15V/24V
隔離耐壓:3000VAC
產品尺寸:39.5*26*22mm
產品級別:工業級 滿足RoHS -

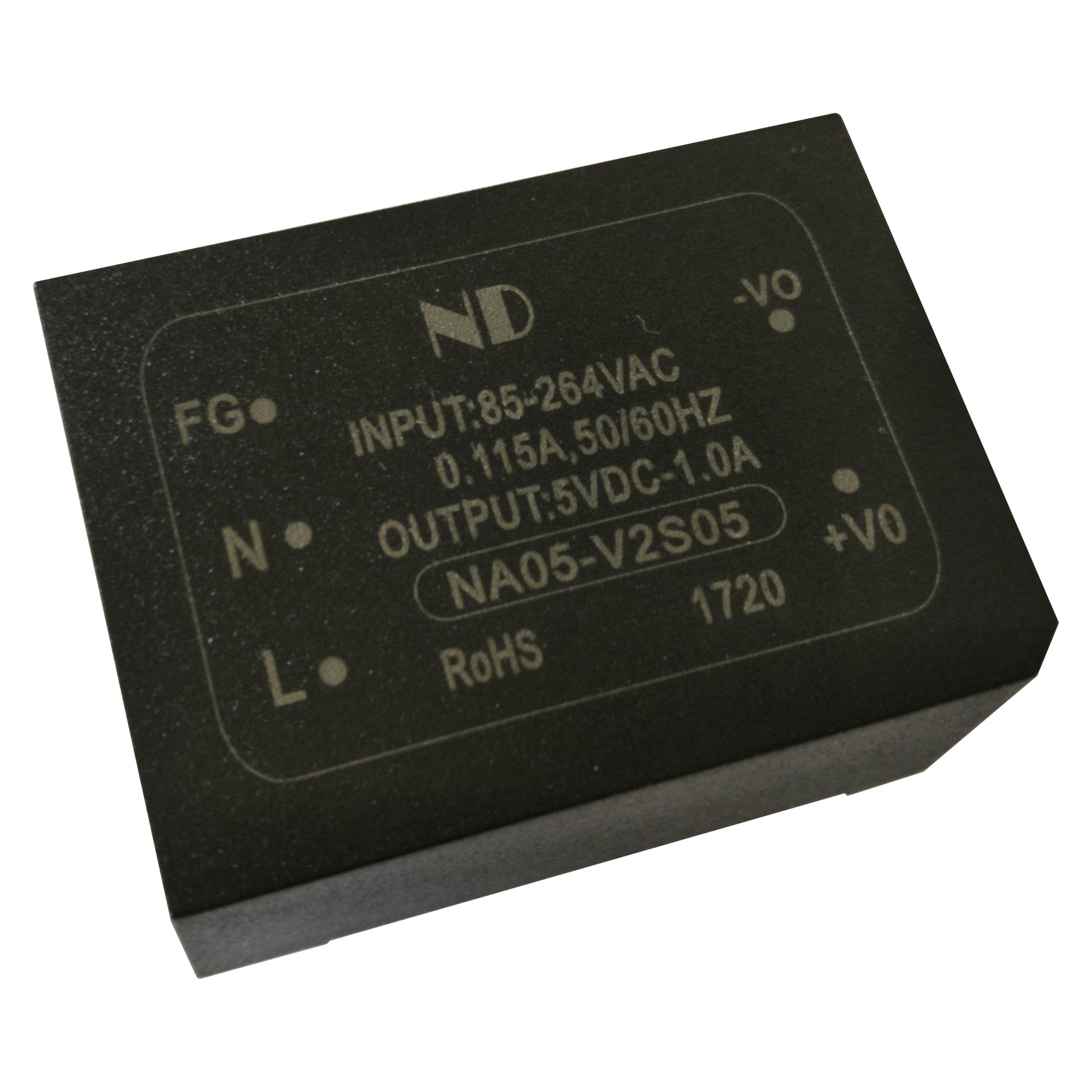

NA05-V2SXX輸出功率:5W
輸入電壓:85-264VAC
輸出電壓:5V/12V/24V/±5V/±12V
隔離耐壓:3000VAC
產品尺寸:48.5*36*20.5mm
產品級別:工業級 滿足RoHS -
NA10-V2SXX輸出功率:10W
輸入電壓:85-264VAC
輸出電壓:5V/12V/15V/24V/±5V/±12V/±15V
隔離耐壓:3000VAC
產品尺寸:55*45*22.5mm
產品級別:工業級 滿足RoHS -

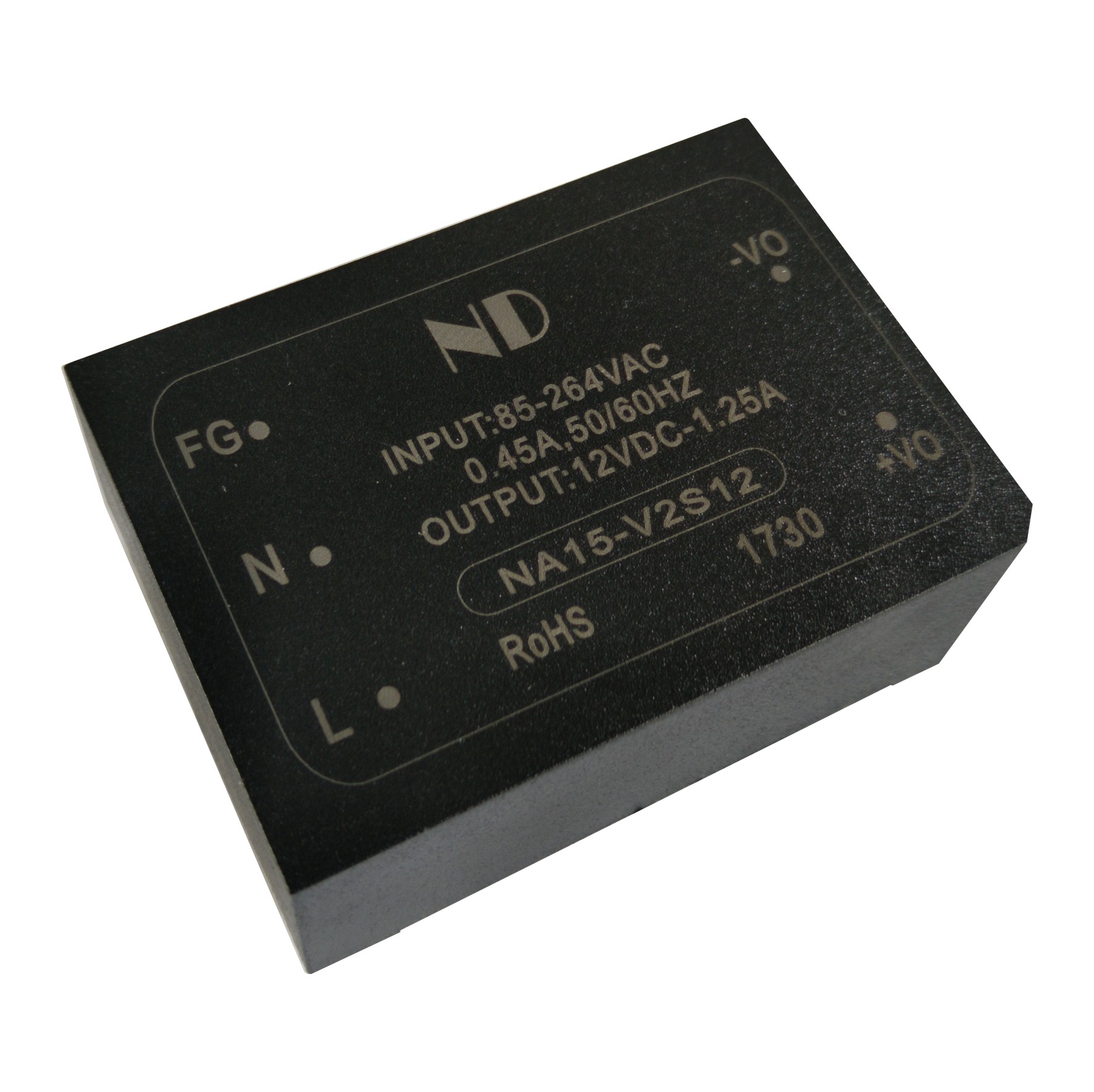

NA15-V2SXX輸出功率:15W
輸入電壓:85-264VAC
輸出電壓:5V/12V/15V/24V
隔離耐壓:3000VAC
產品尺寸:62*45*22.5mm
產品級別:工業級 滿足RoHS
-

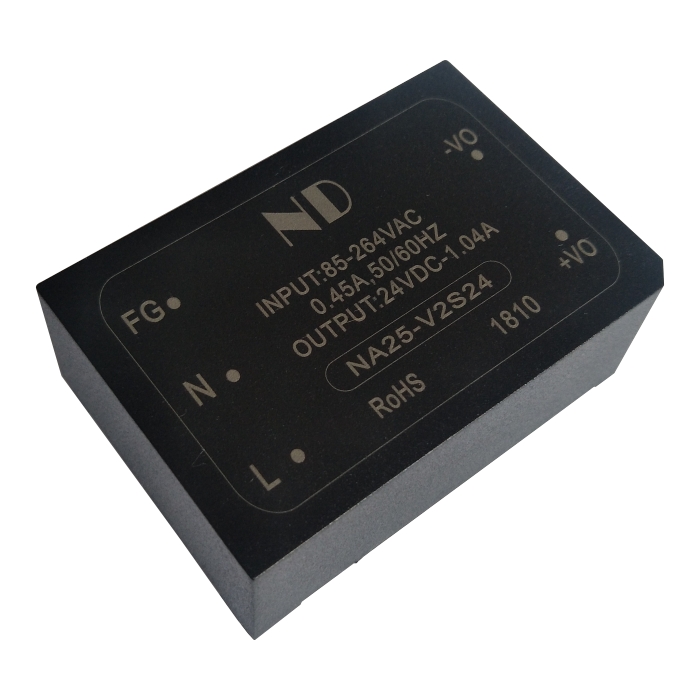

NA25-V2SXX輸出功率:25W
輸入電壓:85-264VAC
輸出電壓:5V/12V/15V/18/24V/28V
隔離耐壓:3000VAC
產品尺寸:70*48*23.5mm
產品級別:工業級 滿足RoHS
